Trek Checkpoint ALR 4 M54 Aqua

Trek Checkpoint ALR 4 M54 Aqua
  • Color: Dark Aquatic
This item is currently not available.

Details

Checkpoint ALR 4 is an aluminum gravel bike that offers an incredible amount of capability for the price. It's built for the rigors of gravel and dirt roads, but it's also right at home on morning commutes and centuries. This bike knows no boundaries, which makes it the ideal gateway to adventure on any road or path.

Specs

Frame 300 Series Alpha Aluminum, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat mount disc, horizontal sliding dropouts, 142x12mm thru axle
Fork Size: 49, 52, 54, 56, 58, 61 Carbon, tapered alloy steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Headset FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Rims/Wheels Bontrager Tubeless Ready, 28-hole, 17mm width, Presta valve
Hubs Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Spokes 14g stainless steel, black
Tires Bontrager GR1 Comp, wire bead, 60 tpi, 700x40c

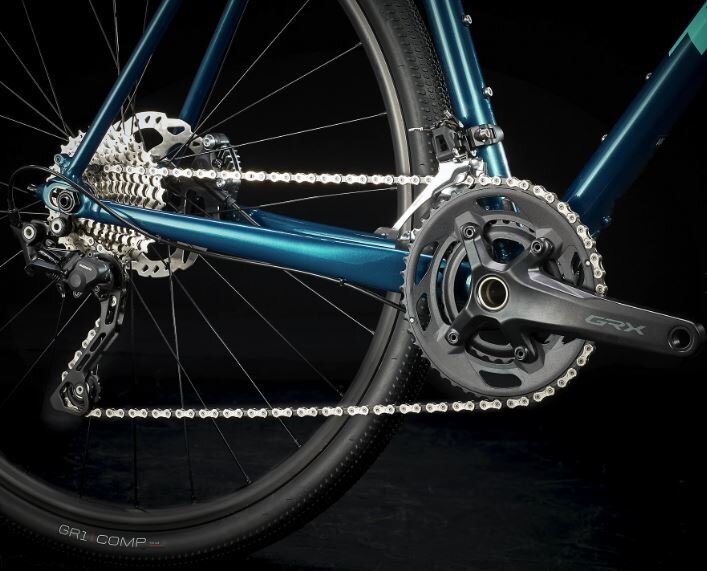

Crankset Shimano GRX RX600, 46/30, 172.5mm length
Bottom Bracket Shimano RS500, 86mm, PressFit
Chain KMC X10
Front Derailleur Shimano GRX RX400, braze-on
Rear Derailleur Shimano GRX RX400, long cage, 36T max cog
Rear Cogs Shimano Tiagra HG500, 11-34, 10 speed
Shifters Shimano GRX RX400, 10 speed
Handlebars Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 42cm width
Tape/Grips Bontrager Supertack Perf tape
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Brake Levers Shimano RX400 hydraulic disc, flat mount
Brakes Shimano RX400 hydraulic disc, flat mount
Saddle Bontrager Montrose Comp, steel rails, 138mm width
Seat Post Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Weight 56 - 10.26 kg / 22.62 lbs

* Subject to change without notice.
