Specialized S-Works Epic S-Works Frameset

Specialized S-Works Epic S-Works Frameset
  • Color: Gloss Fluid Chameleon/Satin Black
  • Color: Gloss Red Tint Fade Over Silver/Tarmac Black
  • Color: Satin Carbon/Color Run Blue Murano Pearl
  • Color: Satin Carbon/Lagoon Blue/Granite
$5,999.99 - $6,000.00
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience in our Wantagh, NY store. You will be notified when your order is ready to be picked up.

Details

Don't worry, we get it...your training buddies all think you're a bit "particular". You may or may not have stockpiled your favorite grips just in case they ever get replaced by a new model. Perhaps your trailside toolbox would make a quality control engineer blush. Whatever the case, you won't find any judgement here.

Instead, the endlessly engineered S-Works Epic frameset is here for you to let your discerning tastes run wild. We sweated every last detail when designing the S-Works frame, from an endlessly refined layup schedule that re-examined every last ply of FACT 12m carbon to optimize weight savings and ride dynamics to the weight-shedding carbon shock link, all so that you focus on the rest, knowing that you're starting with the most capable canvas in the world.

A Smarter BRAIN
True to form, the latest Epic continues the tradition, taking advantage of the most efficient Brain suspension we've ever created to ensure it's always on a first-name-basis with fast.

Frame-Changer
Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike—all more smoothly than ever.

Perfectly matched to the frame's BRAIN system, the S-Works Epic frameset's Position-Sensitive BRAIN fork benefits from RockShox's latest SID Ulitmate SL chassis for next-level steering stiffness that still manages to keep the gram count to a minimum.

- If speed could talk, it'd introduce itself as the all-new S-Works Epic frame. Offering 100-millimeters of brilliantly efficient Brain-controlled travel, the S-Work Epic increases rear-triangle stiffness for peerless power transfer, while the use of FACT 12m carbon, a dedicated layup, and a full carbon shock link also make it the lightest full-suspension frame we've ever created, all while offering the most capable handling in an Epic yet. Nice to meet you, speed.
- Pairing 100 millimeters of the most efficient travel on earth with RockShox's svelte-yet-stiff SID SL Ultimate chassis, the RockShox SID SL Ultimate BRAIN fork serves as the pinnacle of XC-race suspension perfection.

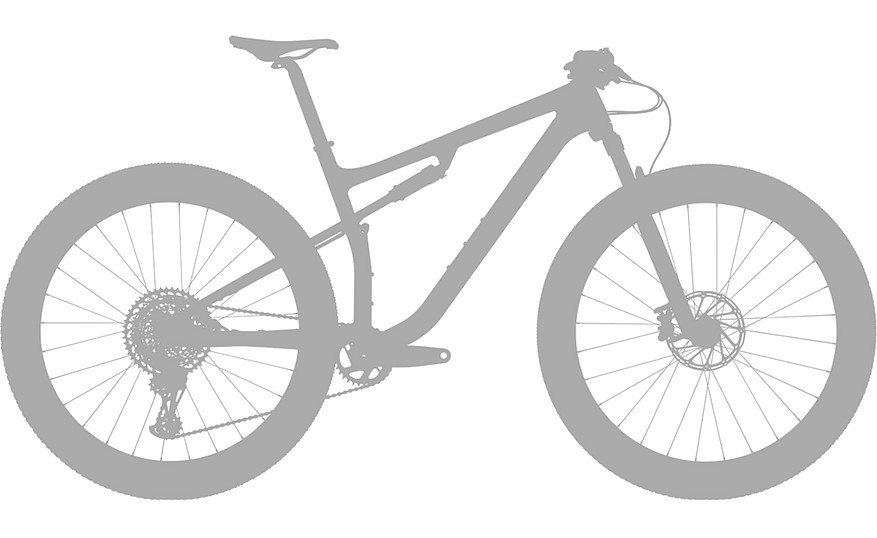

Geometry

Geometry Chart:
X-SmallSmallMediumLargeX-Large
Stack 596mm 586mm 591mm 605mm 623mm
Reach 390mm 415mm 445mm 470mm 495mm
Head Tube Length 95mm 95mm 100mm 115mm 135mm
Head Tube Angle 67.5° 67.5° 67.5° 67.5° 67.5°
BB Height 314mm 324mm 324mm 324mm 324mm
BB Drop 58mm 48mm 48mm 48mm 48mm
Trail 106mm 106mm 106mm 106mm 106mm
Fork Length, Full 505mm 505mm 505mm 505mm 505mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front Center 663mm 687mm 719mm 750mm 782mm
Chainstay Length 433mm 433mm 433mm 433mm 433mm
Wheelbase 1090mm 1116mm 1148mm 1179mm 1211mm
Bike Standover Height 740mm 763mm 766mm 776mm 788mm
Seat Tube Length 375mm 400mm 430mm 470mm 520mm
Seat Tube Angle 76.5° 75.8° 75.5° 75.5° 75.5°
Top Tube Length, Horizontal 533mm 563mm 598mm 626mm 656mm
Sizes:
InchesCMSize
4'10"-5'1" 148-155 X-Small
5'2"-5'5" 158-165 Small
5'5"-5'10" 165-178 Medium
5'10"-6'1" 178-185 Large
6'1"-6'4" 185-193 X-Large
6'3"-6'6" 191-200 XX-Large

Specs

Frame S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Fork RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel
Rear Shock RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm
Seatpost S-Works FACT carbon, 10mm offset, 30.9mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Fluid Chameleon/Satin Black / X-Small 888818771752 70322-0001
Gloss Fluid Chameleon/Satin Black / Small 888818771660 70322-0002
Gloss Fluid Chameleon/Satin Black / Medium 888818773824 70322-0003 70322-0003
Gloss Fluid Chameleon/Satin Black / Large 888818773145 70322-0004 70322-0004
Gloss Fluid Chameleon/Satin Black / X-Large 888818772537 70322-0005 70322-0005
Gloss Red Tint Fade Over Silver/Tarmac Black / X-Small 888818618606 77620-0001
Gloss Red Tint Fade Over Silver/Tarmac Black / Small 888818618309 77620-0002
Gloss Red Tint Fade Over Silver/Tarmac Black / Medium 888818618781 77620-0003
Gloss Red Tint Fade Over Silver/Tarmac Black / Large 888818618569 77620-0004
Gloss Red Tint Fade Over Silver/Tarmac Black / X-Large 888818618545 77620-0005
Satin Carbon/Color Run Blue Murano Pearl / X-Small 888818773732 70322-0101
Satin Carbon/Color Run Blue Murano Pearl / Small 888818772568 70322-0102
Satin Carbon/Color Run Blue Murano Pearl / Medium 888818771646 70322-0103 70322-0103
Satin Carbon/Color Run Blue Murano Pearl / Large 888818772278 70322-0104 70322-0104
Satin Carbon/Color Run Blue Murano Pearl / X-Large 888818773176 70322-0105 70322-0105
Satin Carbon/Lagoon Blue/Granite / X-Small 888818771974 70322-0201
Satin Carbon/Lagoon Blue/Granite / Small 888818772483 70322-0202
Satin Carbon/Lagoon Blue/Granite / Medium 888818772926 70322-0203 70322-0203
Satin Carbon/Lagoon Blue/Granite / Large 888818772162 70322-0204 70322-0204
Satin Carbon/Lagoon Blue/Granite / X-Large 888818773671 70322-0205
