Shimano Deore XT M8200/8220 Disc Brake Upgrade Kit

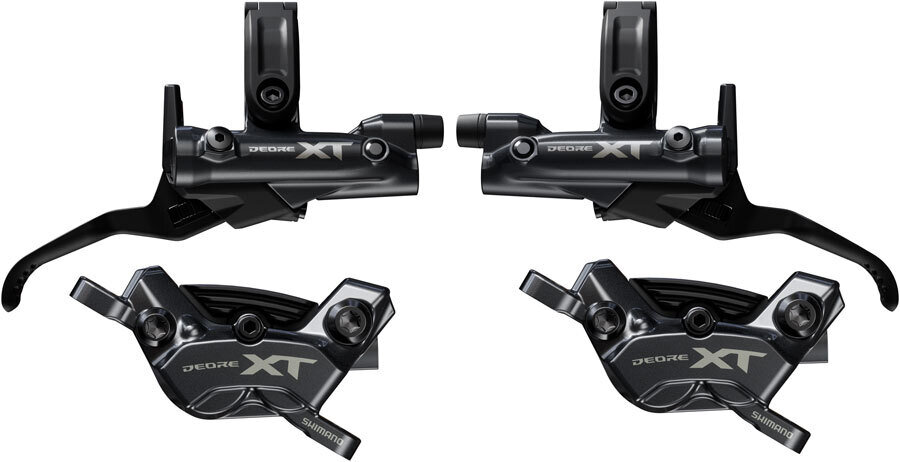

Shimano Deore XT M8200/8220 Disc Brake Upgrade Kit - Right and Left BL-M8200 Levers, Post Mount, Front and Rear BR-M8220 4-Piston Calipers

Precision Braking Performance for Demanding Trails

Elevate your mountain biking experience with the Shimano Deore XT M8200/8220 Disc Brake Upgrade Kit. Combining the power, consistency, and ergonomics that define Shimano’s XT series, this comprehensive kit delivers trail-proven stopping performance in all conditions. Whether you’re tackling steep descents or flowing singletrack, you’ll appreciate the smooth modulation, lightweight construction, and reliable control of this premium braking system.

Key Features
? Consistent, Powerful Braking
The 4-piston (BR-M8220) or 2-piston (BR-M8200) calipers deliver outstanding stopping power and heat management, suited for aggressive enduro riding or lighter XC applications.

? Servo Wave Action Levers
Ergonomic BL-M8200 levers offer quick engagement, improved modulation, and customizable reach adjustment for a dialed-in feel.

? Easy Installation & Maintenance
Shimano’s proven One-Way Bleeding and funnel system simplify hydraulic maintenance, while I-SPEC EV compatibility allows clean cockpit integration with shifters and remotes.

? Ice Technologies Heat Management
Optimized caliper and rotor design dissipate heat efficiently, reducing brake fade on long descents.

Specifications
Brake Lever Model: BL-M8200

Type: Hydraulic Servo Wave

Adjustment: Tool-free reach adjust, free stroke adjust

Clamp: I-SPEC EV

Caliper Models:

BR-M8200 (2-Piston): Lightweight XC/trail performance

BR-M8220 (4-Piston): Maximum power for enduro and aggressive trail riding

Brake Hose: SM-BH90-SBM

Hose Length: Front: 1000 mm / Rear: 1700 mm (trimmable)

Pads:

BR-M8200: Resin or metallic pad options

BR-M8220: H03A finned metallic pads (included)

Rotors: Compatible with Shimano Center Lock or 6-bolt Ice-Tech rotors (sold separately)

Fluid: Shimano Mineral Oil

Mounting: Post Mount

Weight (approx.):

2-piston configuration: ~265 g per wheel (lever, caliper, hose)

4-piston configuration: ~305 g per wheel (lever, caliper, hose)

Included in the Kit
2x BL-M8200 brake levers (left and right)

2x brake calipers (choose 2-piston BR-M8200 or 4-piston BR-M8220)

Pre-bled hoses (front and rear)

Shimano finned brake pads (model varies by caliper)

Olive & barb fittings for hose shortening

Mounting hardware

Bleed block & small parts
