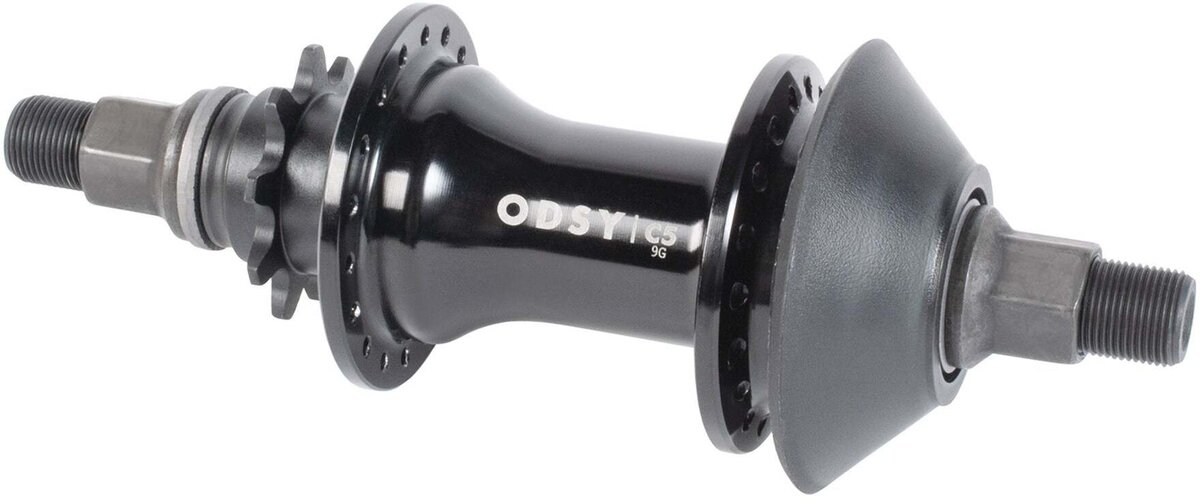

Odyssey C5 Cassette Hub

The C5 is a strong, drive switchable, affordably priced cassette hub with a 14mm chromoly male axle. The LHD/RHD compatible 9T driver rolls on three precision, sealed cartridge bearings. A replaceable plastic hub guard is included.

Features
36-H, 6061 T-6 aluminum hub shell
14mm, 4130 chromoly hollow axle, w/6mm hex broaching
9T driver with 3-Pawl independent spring design
RHD/LHD switchable
Removable plastic hub guards (compatible with Odyssey/G-Sport hubs)
6802 sealed cartridge driver bearings (3)
6903 sealed cartridge hub shell bearings (2)
Specs
Drive Side Effective Flange Diameter: 49mm
Non-Drive Side Effective Flange Diameter: 49mm
Drive Side Flange to Center Distance: 27mm
Non-Drive Side Flange to Center Distance: 30mm
