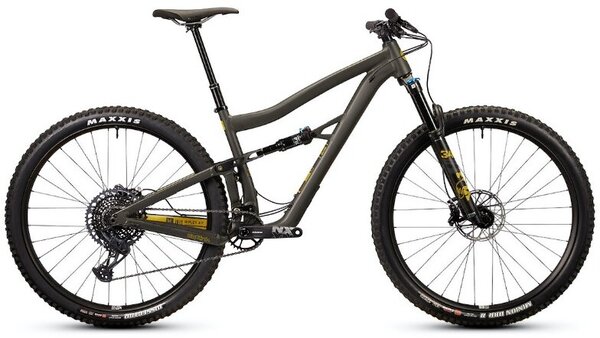

Ibis Ripley AF NGX

Ibis Ripley AF NGX
  • Color: Pewter
  • Color: Chalk
This item is currently not available.

Details

The Ripley AF is Ibis's beloved, category-defying, short-travel, singletrack-scorching Ripley-rendered in aluminum, with more aggressive geometry. All the sizzle and pop of the carbon Ripley, now available as a complete bike at a wallet-friendly price.

MODERN GEOMETRY, PRECISE HANDLING
A trail-friend­ly 65.5-degree head angle and short (44mm) off­set 130mm fork com­bined with 29” wheels makes for a super plant­ed but still play­ful front end feel. A 76-degree seat angle puts your pow­er direct­ly to the ped­als, while the short chain­stays and ped­al-friend­ly dw-link kine­mat­ics deliv­er that pow­er with­out squan­der­ing a sin­gle watt.

DW LINK SUSPENSION
Our 15-year col­lab­o­ra­tion with Dave Wea­gle has yield­ed yet anoth­er bike with unpar­al­leled climb­ing effi­cien­cy and tractabil­i­ty. Incred­i­ble snap and respon­sive­ness are its trade­marks, and a whole mess of plush, chun­der-eat­ing, down­hill-crush­ing good­ness gets thrown in for good mea­sure. Wrap that togeth­er and you get the best sus­pen­sion you’ll find any­where. It’s that good.

LONG DROPPER POST
The Rip­ley AF frame is designed with clear­ance for long drop­pers in mind.

2.6” TIRE CLEARANCE
We pio­neered the wide rim rev­o­lu­tion a few years ago and inspired a new crop of wider 2.4”?—?2.6” tires. When paired togeth­er, this com­bo can be run at ultra-low pres­sures that pro­duce elbow-drag­ging cor­ner­ing trac­tion with­out sac­ri­fic­ing speed.

REMOVABLE ISCG-05 MOUNT.
There if you want it, remov­able if you don’t.

bike frame with labeled dimensions
Bike Sizes:
SmallMediumLargeX-Large
A. Reach 425mm 450mm 475mm 500mm
B. Stack 599mm 613mm 622mm 631mm
C. Standover 676mm 703mm 722mm 759mm
D. Effective Top Tube 574mm 603mm 630mm 658mm
E. Head Tube Angle 65.5° 65.5° 65.5° 65.5°
F. Head Tube Length 90mm 105mm 115mm 125mm
G. Seat Tube Angle 76° 76° 76° 76°
H. Seat Tube Length 368mm 381mm 418mm 482mm
I. Bottom Bracket Height 335mm 335mm 335mm 335mm
L. Trail 114mm 114mm 114mm 114mm
M. Wheelbase 1157mm 1188mm 1217mm 1246mm
O. Chainstay Length 432mm 432mm 432mm 432mm
Sizes:
Small 152–165CM
Medium 163–175CM
Large 173–185CM
X-Large 183–198CM

Specs

Frame Ripley AF
Fork Fox Performance Series, Float 34, 130mm, 44mm offset, 29”, 110x15mm
Rear Shock Fox Performance Series Float DPS with EVOL, 190mm x 45mm
Wheels Blackbird Send Alloy (Send I front, Send II rear) / 29" / Ibis Hubs
Tires Maxxis DHR2 29" x 2.4" Exo TR (front), Maxxis Dissector 29" x 2.4" Exo TR (rear)
Bottom Bracket SRAM DUB BSA
Crankset SRAM NX Eagle DUB Wide spindle, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
Shifters SRAM NX Eagle
Rear Derailleur SRAM GX Eagle
Cassette/Freewheel SRAM GX, XG 1275, 10-52
Chain SRAM NX Eagle
Brakes SRAM G2, 4 Piston
Rotors SRAM Centerline 6 bolt 180mm
Handlebars Ibis Aluminum, 780mm
Tape/Grips Lizard Skin Charger Evo
Stem Ibis 31.8mm S/M: 40mm, L/XL: 50mm
Headset Cane Creek 40 ZS44/ZS56
Seatpost KS Rage-i Dropper S: 125mm, M: 150mm, L/XL: 170mm
Saddle WTB Volt 142

* Subject to change without notice.

Part Numbers

Option MPN
Pewter / Medium RLA2PWSNGAL35
Pewter / Large RLA3PWSNGAL35
Chalk / Medium RLA2CKSNGAL35
