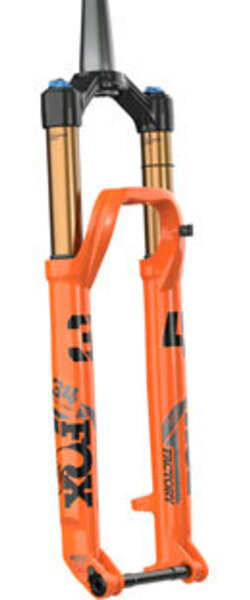

Fox Racing Shox 34 K Float Step-Cast Factory Suspension Fork - 29", 120 mm

Fox Racing Shox 34 K Float Step-Cast Factory Suspension Fork - 29", 120 mm
Please select options
Sorry, this item is currently not available. Please contact us for more information. (800) 649-3739 or


FOX 34 Step-Cast Factory Suspension Fork - 29", 120 mm, 15 x 110 mm, 51 mm Offset, Shiny Orange, FIT4, 3-Position

The 34 Step-Cast Factory is the choice for riders who want an all-round fork that performs in a vast range of applications: lightweight for climbs and highly capable for demanding terrain with enough travel to instill confidence when the trail gets rough. Weight savings are attributed to external lower casting steps, hollow lower section, and shortened shaft lengths.

Step-Cast chassis
Genuine Kashima Coating on upper tubes
FIT4 damper and FLOAT EVOL air spring
Dedicated air spring and damper tune are specific for this travel range, with a lighter tune at mid and higher velocities

Wheel Size: 29" , 27.5+
Positive Spring: Air
Brake Type: Post Mount 160
Crown Race: 40
External Adjustments: High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
Negative Spring: Air
Stanchion Diameter: 34
Steerer Type: Tapered
Maximum Tire Width: 66
Offset: 51
Steerer Tube Length (mm): 264
Color: Shiny Orange
Front Axle: 15mm Thru x 110mm
S.H.I.S. Stem Clamp Diameter: 28.6
Travel (mm): 120
Axle to Crown Length: 530
Lockout Switch: Crown
