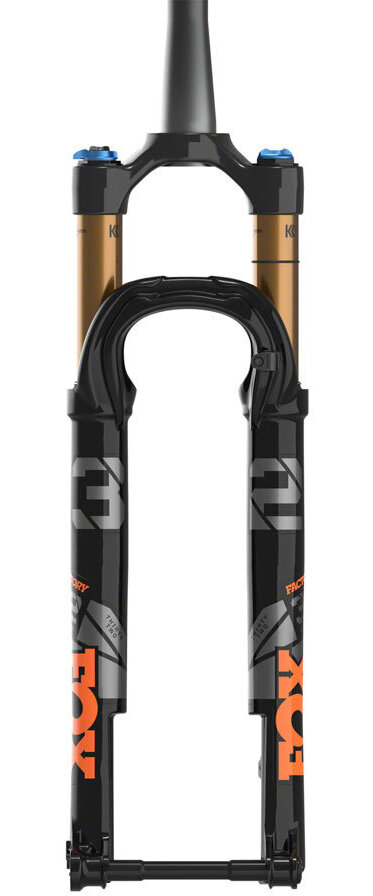

FOX 32 Step-Cast Factory Suspension Fork - 29", 100 mm

FOX 32 Step-Cast Factory Suspension Fork - 29", 100 mm
Please select options


Competition drives innovation, and as cross-country athletes and course designers push the boundaries of lightweight components, 32 Step-Cast Factory rises to meet the demand. A redesigned crown for 2020 increases stiffness to the same level as the trail-proven 34. The distinct shape of the Step-Cast chassis uses a narrow stance to save weight and the step design makes room for the spokes and brake rotor.


-Genuine Kashima Coating on upper tubes
-32 mm upper tubes and ample bushing overlap for a quality ride
-Hollowed out lower legs provide even more weight savings
-FIT4 damper and FLOAT air spring


-Positive Spring: Air
-Wheel Size: 29"
-Brake Type: Post Mount 160
-Crown Race: 40
-External Adjustments: Low Speed Compression Damping , Rebound Damping
-Negative Spring: Air
-Stanchion Diameter: 32
-Steerer Type: Tapered
-Maximum Tire Width: 58
-Offset: 51
-Color: Matte Black
-Steerer Tube Length (mm): 264
-Front Axle: 15mm Thru x 110mm
-S.H.I.S. Stem Clamp Diameter: 28.6
-Travel (mm): 100
-Axle to Crown Length: 501
-Lockout Switch: Crown
-Defined Color: Black


Part Numbers

821973384566 910-20-941
